HONEYCOMB

Hexaboard Honeycomb panel is a high technology sandwich structure with a honeycomb structure inside and high specific composite folios on both sides. Due to its features such as lightness, high resistance and eco-friendly, made it the indispensable solutions of the main sectors such as Automotive, Construction, Furniture.

A sandwich construction using honeycomb core with its high degree of resiliency is more impact resistant than a single skin laminate with equal or higher weight.

With it's natural harmonic of 125-150 HZ polypropylene is known for it's vibration damping/noise absorption properties. Noise and vibration travel well through a single skin laminate. Boats with cored hulls are simply quieter.

The honeycomb core structure are made by little hexagon cells. This structore core is placed between two polypropylene sheets without any adhesive and can be supplied from 4mm to 35mm.

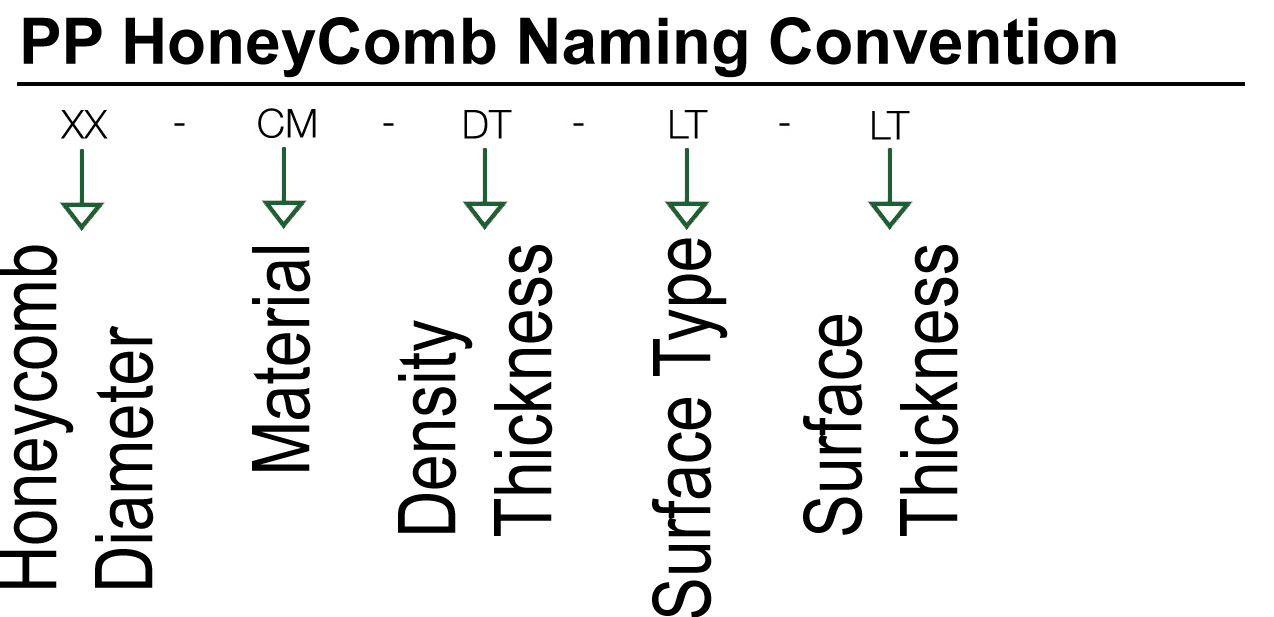

For example;
Type 9,6PP120/20WPC1,2
Cell Diameter: 9,6mm
Material: PP
Density: 120 kg/m3 – 20mm
Surface Type: Wood plastic composite
Surface Thickness: 1 ,2
Total Thickness: 20+(1,2x2)= 22,4 mm

Types of Honeycomb Panels

PP Core + PP Skin
- PP honeycomb structure core placed between two pp solid sheets

PP Core + Wood Skin
- PP honeycomb structure core placed between two wood based sheets.

PP Core + Nonwoven

Advantages

Perfect strenght

Resistance of moisture and rot

Elasticity

High level lightweight

Effectively reducing cost

Sound and vibrate insulation

Impact resistance

Easy process (drilling, moulding, cutting etc.)

Thermal insulation

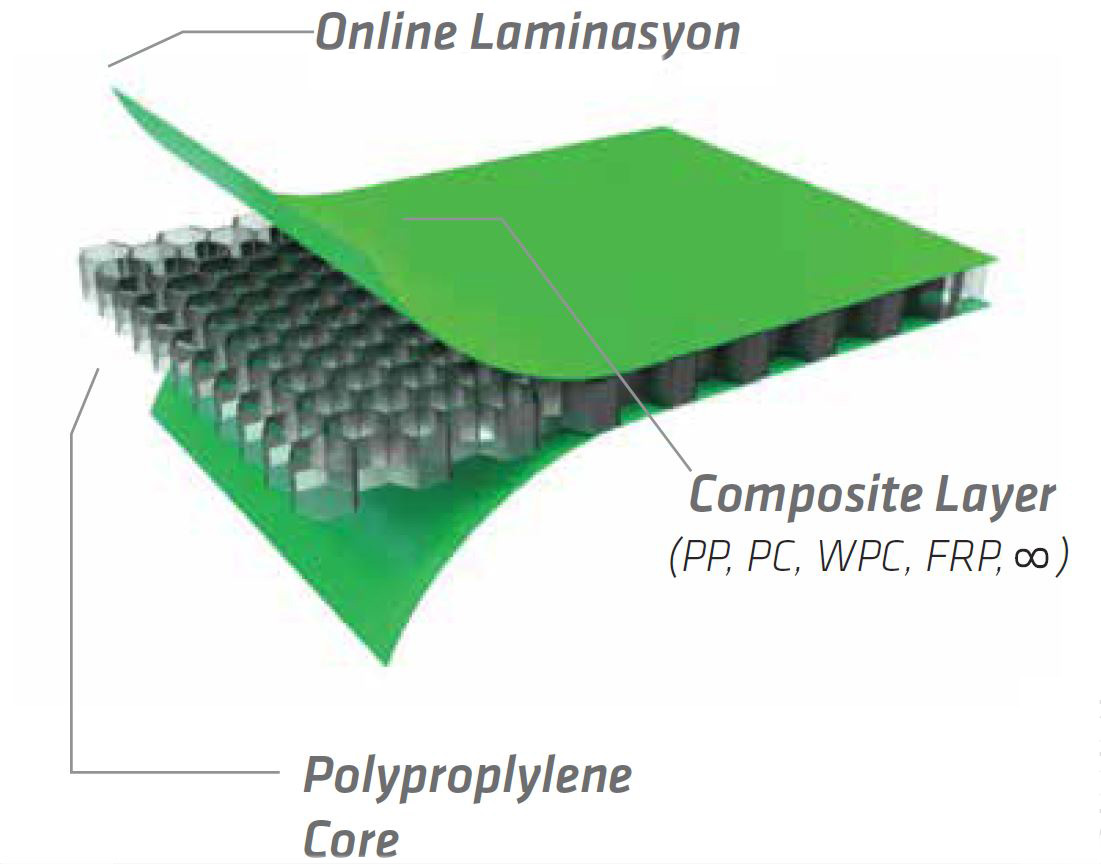

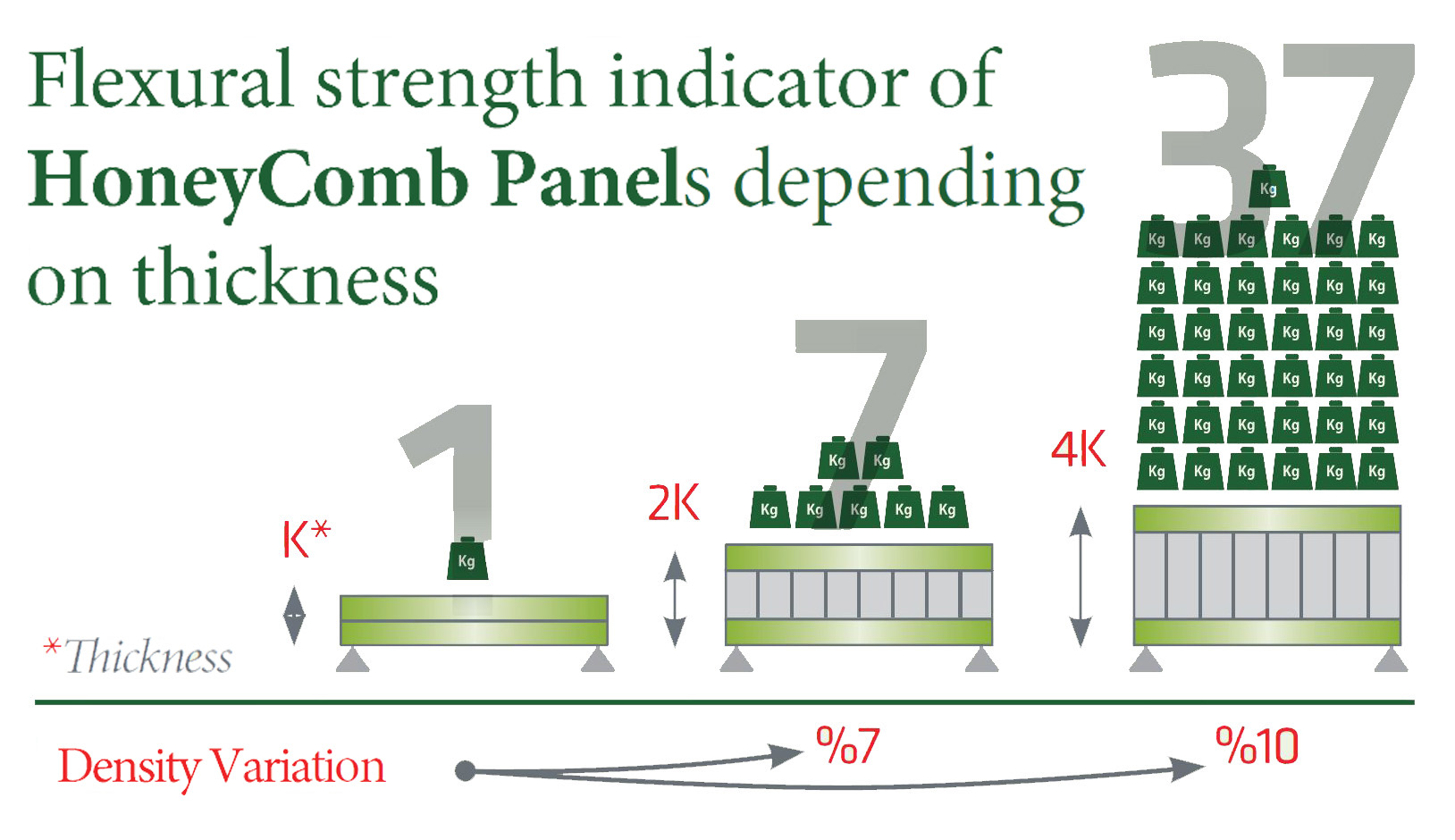

HoneyComb Panel Structure

Hexabord Honeycomb Panel

Hexaboard Honeycomb panel is a high techonolgy sandwich structure with a honeycomb structure inside and high specific composite folios on both sides. Due to its features such as lightness, high resistance and eco-friendly, made it the indispensable solutions of the main sectors such as Automotive, Construction, Furniture.

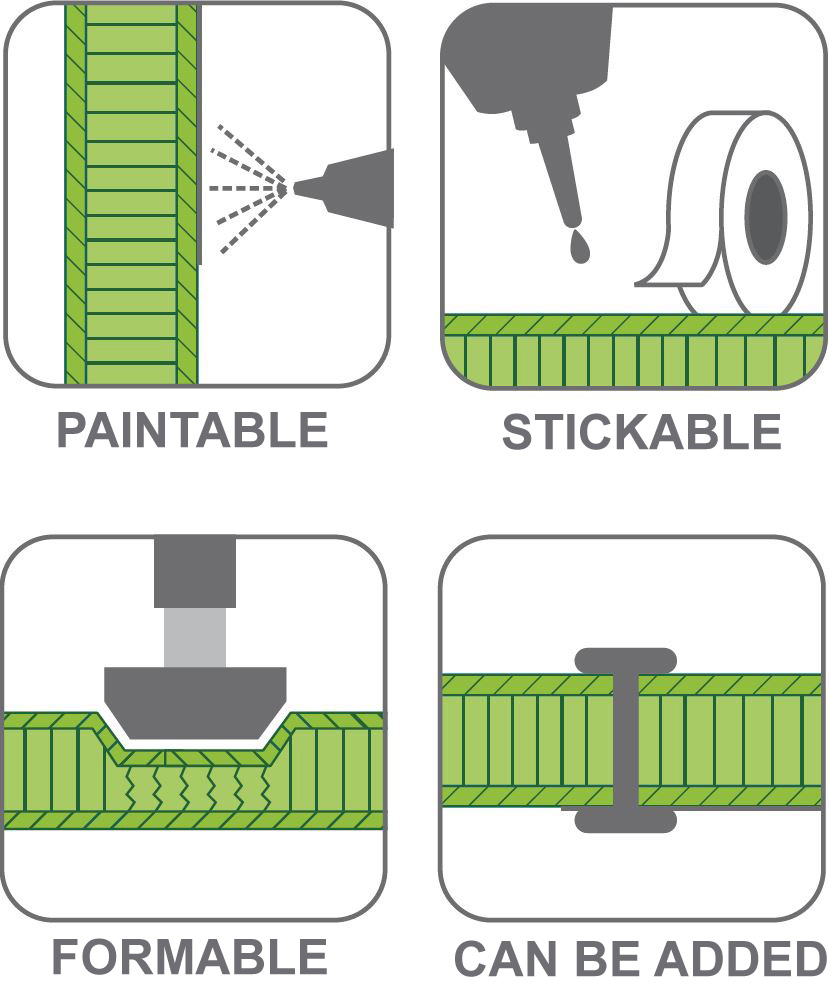

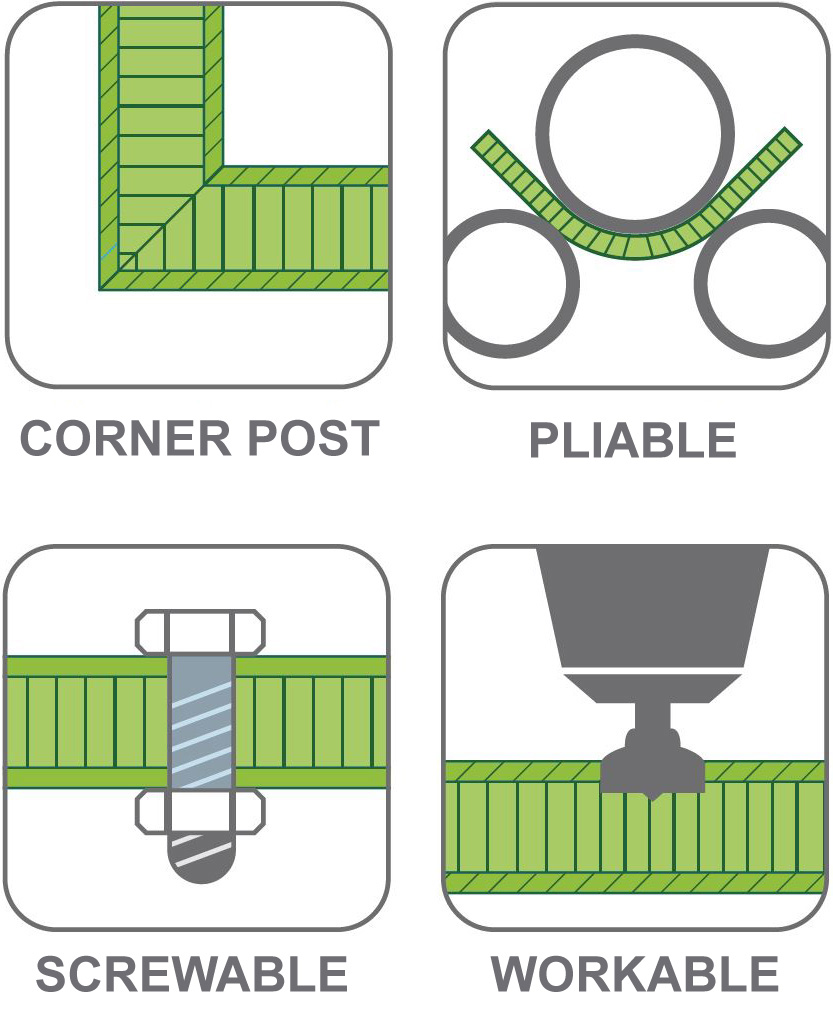

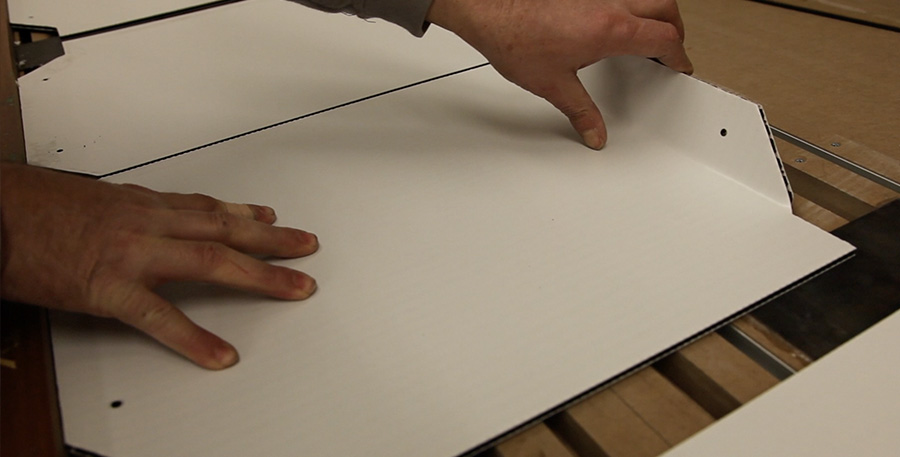

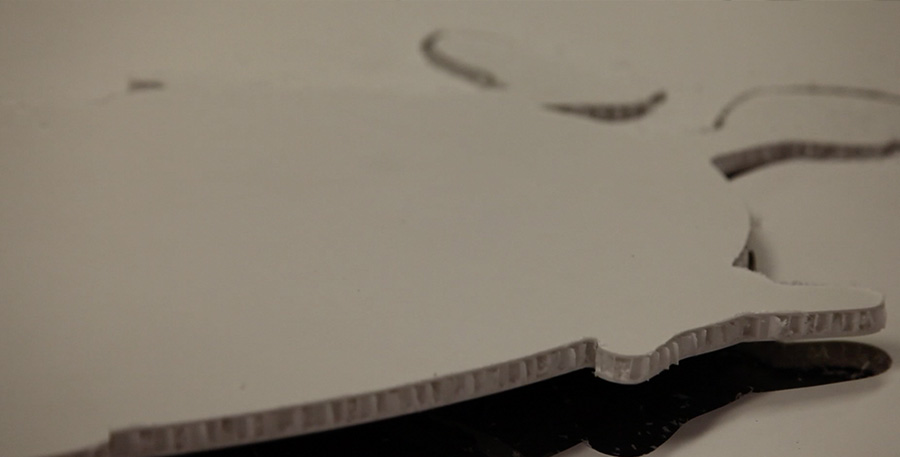

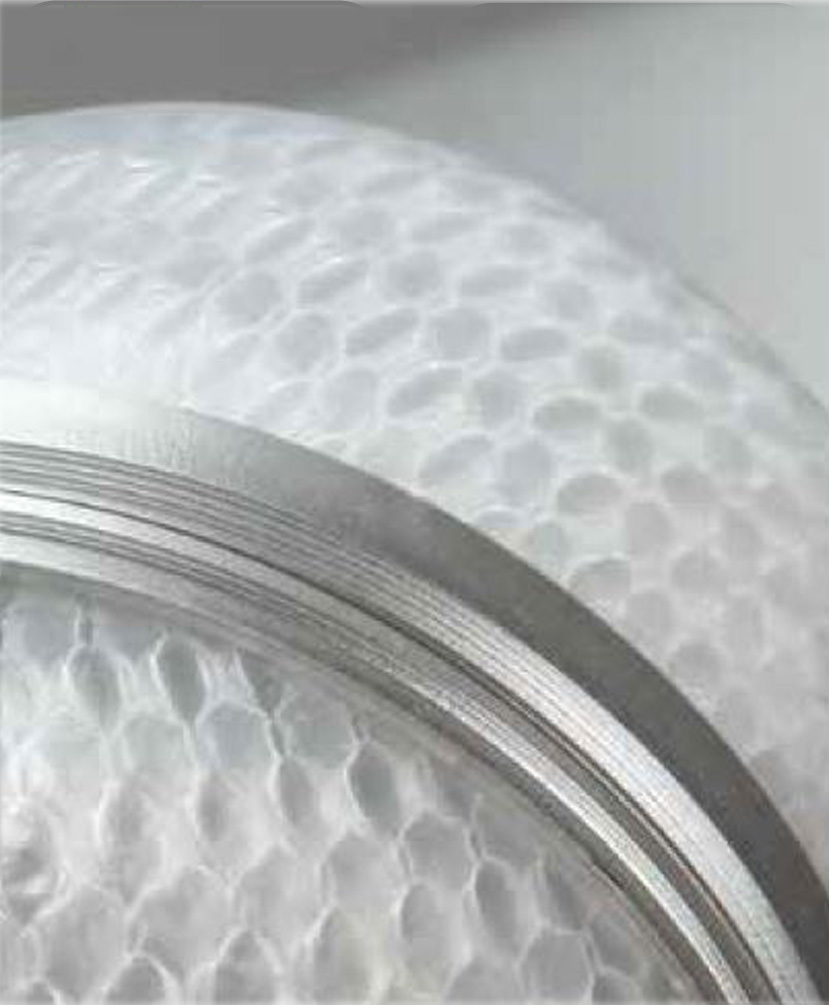

Formable and Workable Panel Structure

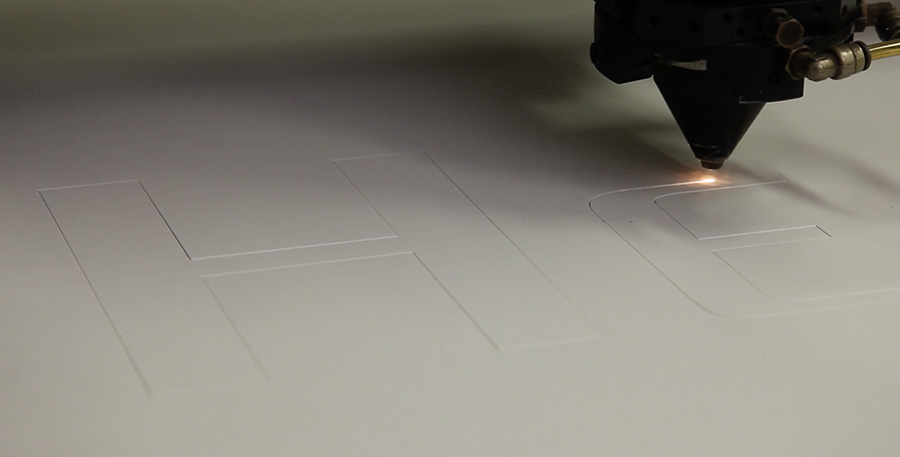

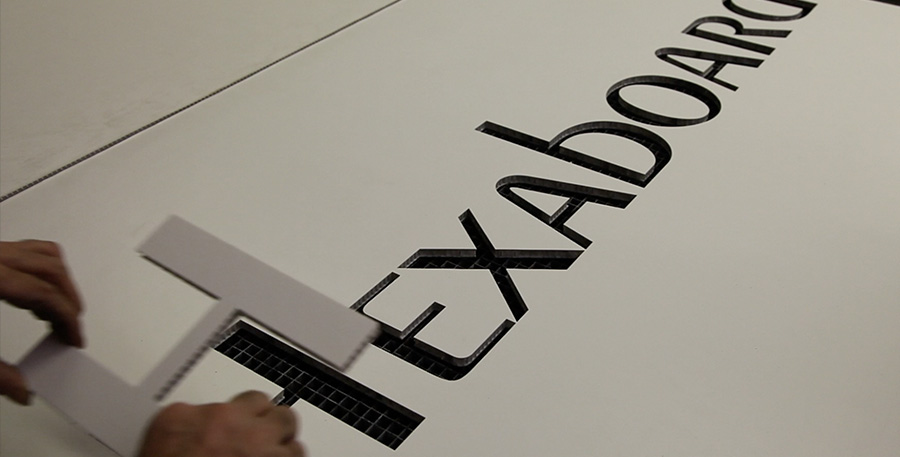

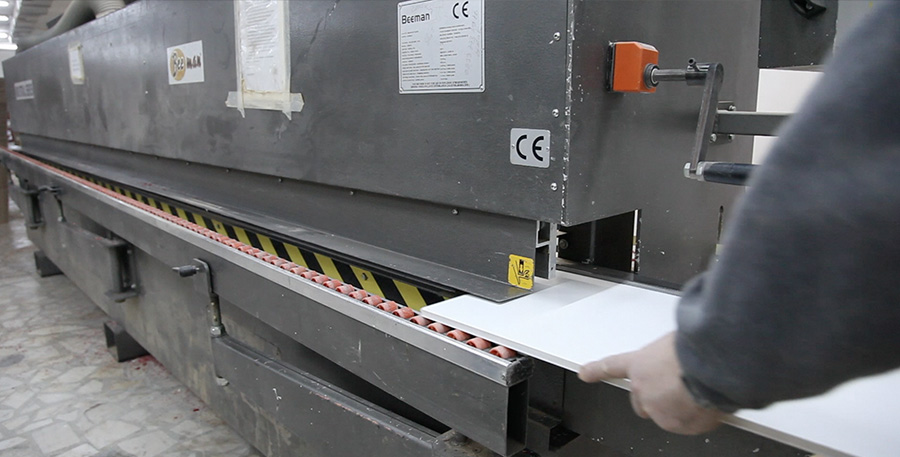

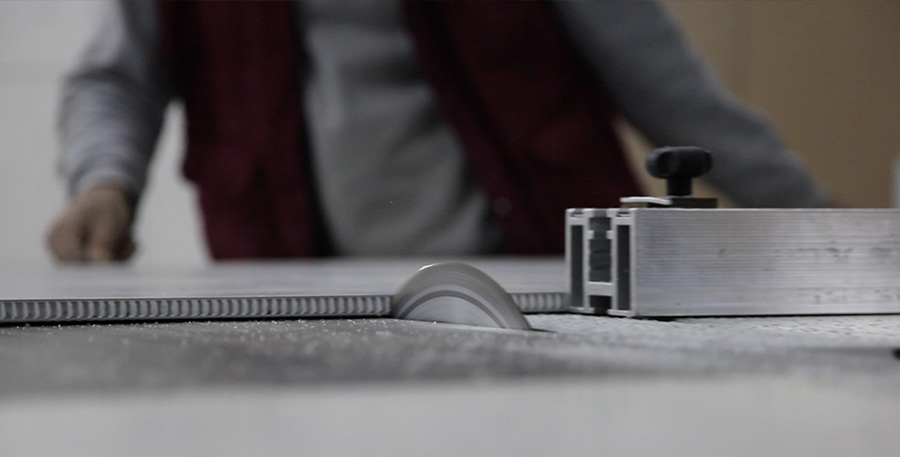

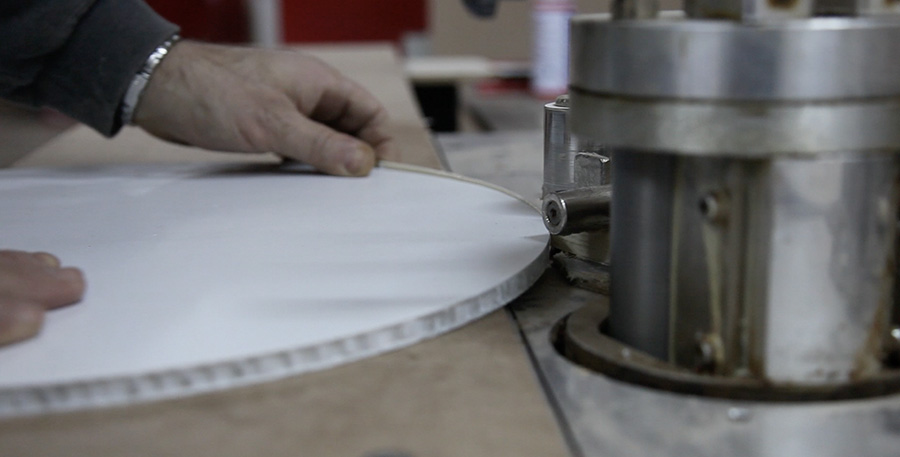

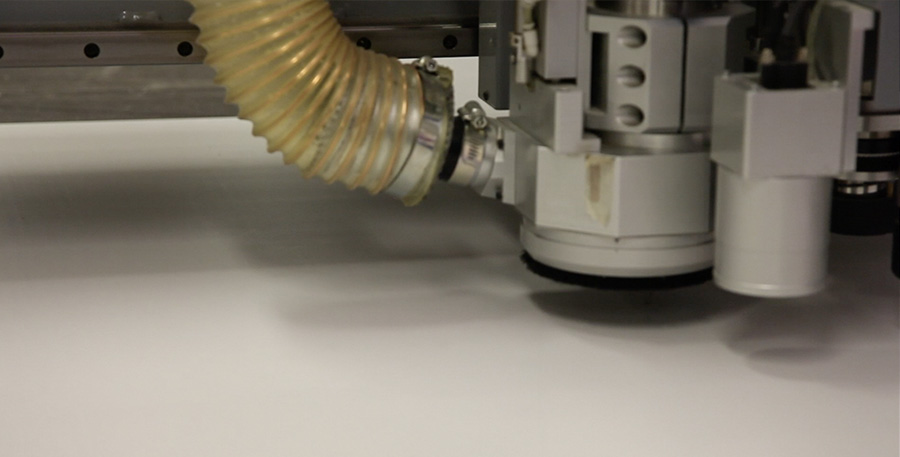

Material Operating Techniques

Thermal Insulation

Due to compressed air in the comb cells, thermal insulation performance of the Honeycombs is much higher, comparing to metals with hard polymer core, glass and sandwich panels. While thermal insulation coefficient of a typical PP comb structure Honeycomb was 0.07 WmK, thermal conductivity of panels with hard PP cores is approximately 0.02 WmK.

Comparison of Thermoplastic HoneyComb with other Panels

Than Corrugated steel plate;

  • It is light, easy to install
  • High impact resistance
  • Resistant (with fiberglass)
  • Thermal insulation, waterproof
  • Foods can be carried
  • Stainless, high corrosion resistance
  • Easy to repair
  • Long lifetime

Than Plywood;

  • It is light, easy to install
  • High impact resistance
  • Robust (with fiberglass)
  • Waterproof, high heat resistance
  • Foods can be carried
  • Eco-friendly 100% recyclable
  • Increases resistance to oil and contamination
  • Easy to repair
  • Long lifetime

Than Fiber Reinforced Polymer;

  • It is light, easy to install
  • High impact resistance
  • Waterproof
  • High resistance to delamination
  • 100% recyclable
  • Easy to repair
  • Long lifetime

Application Areas

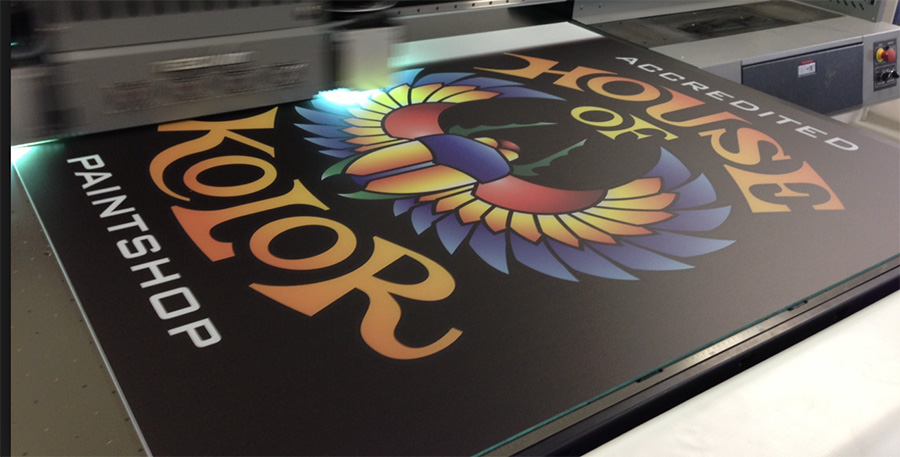

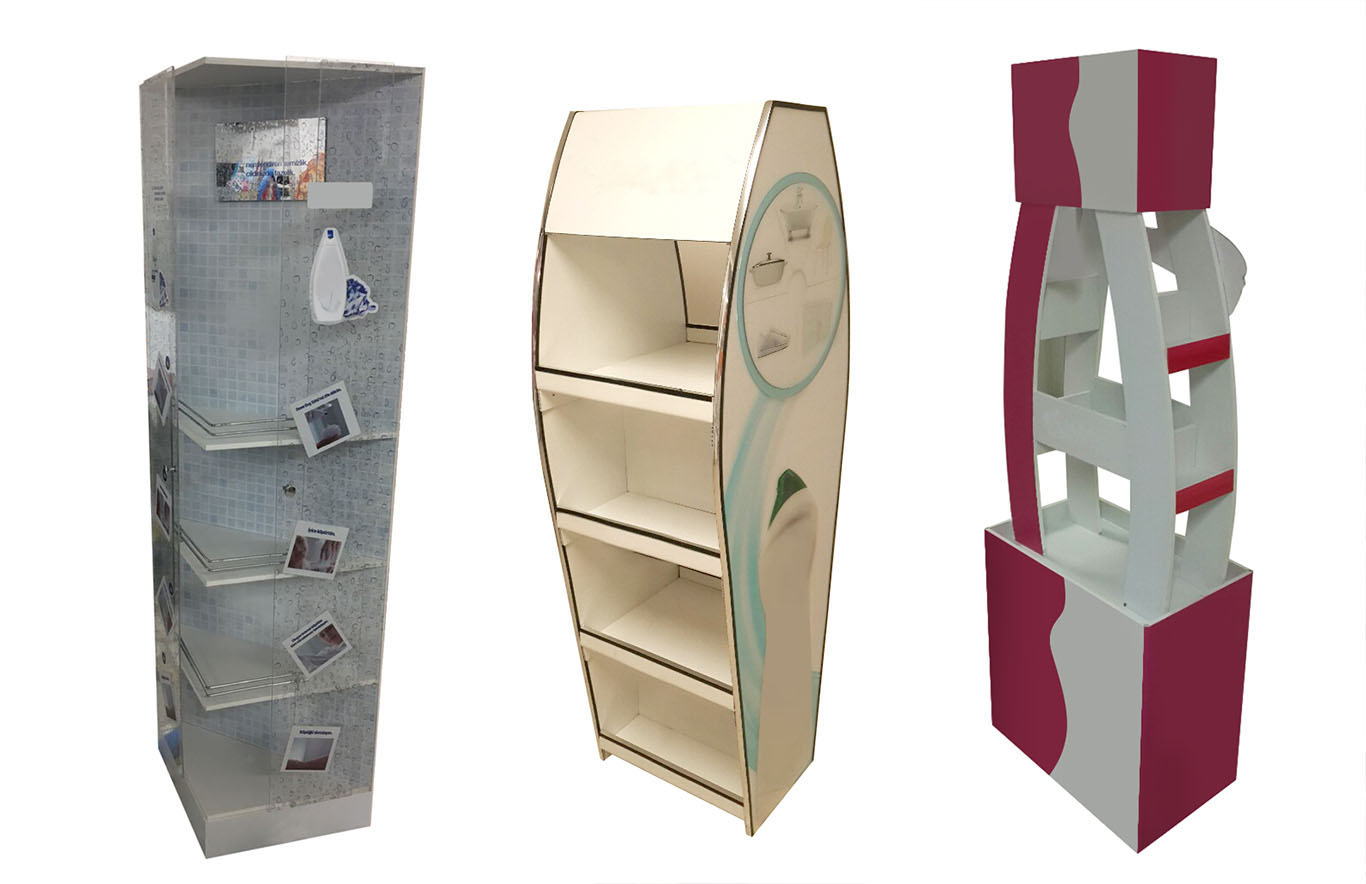

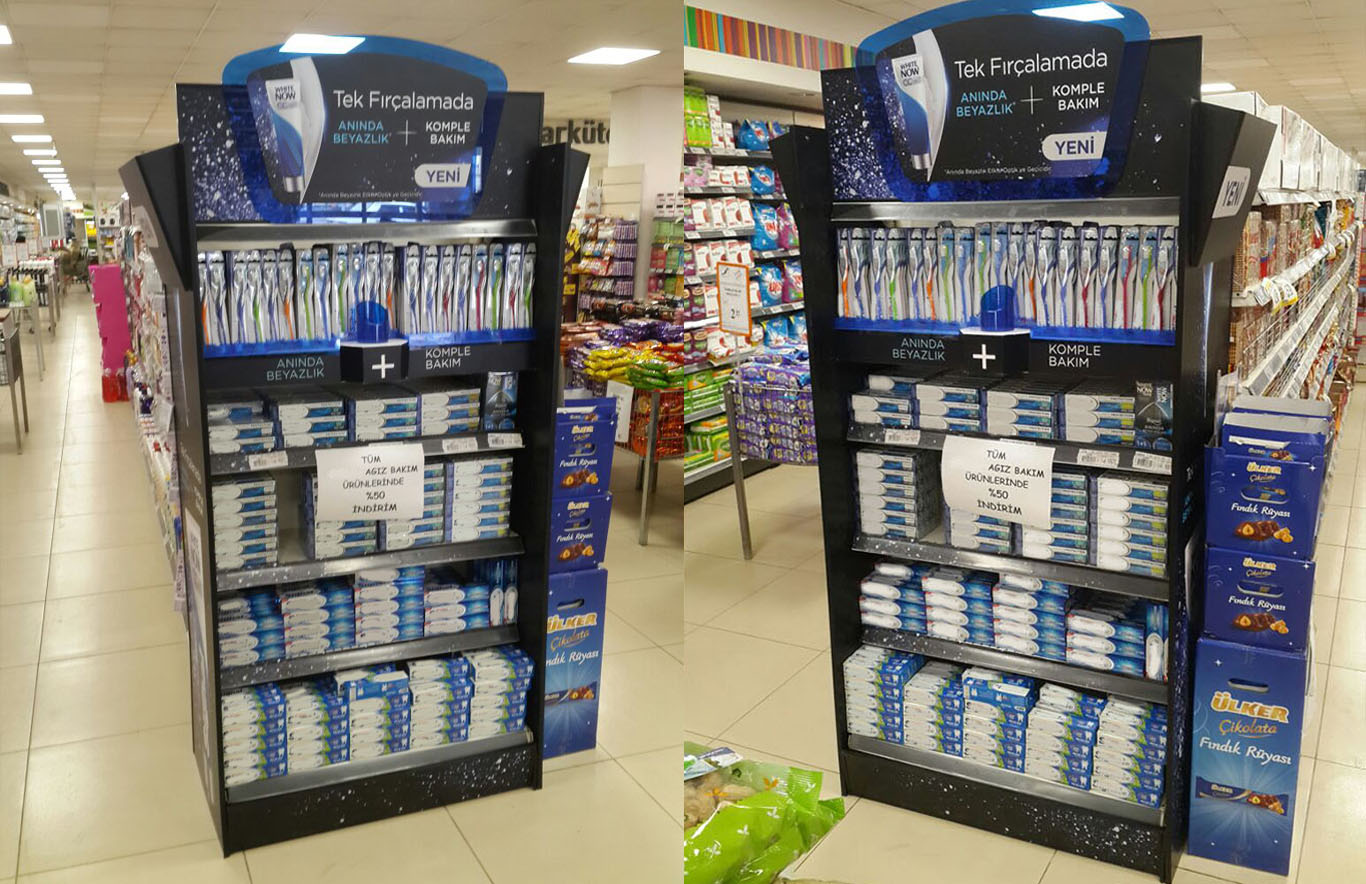

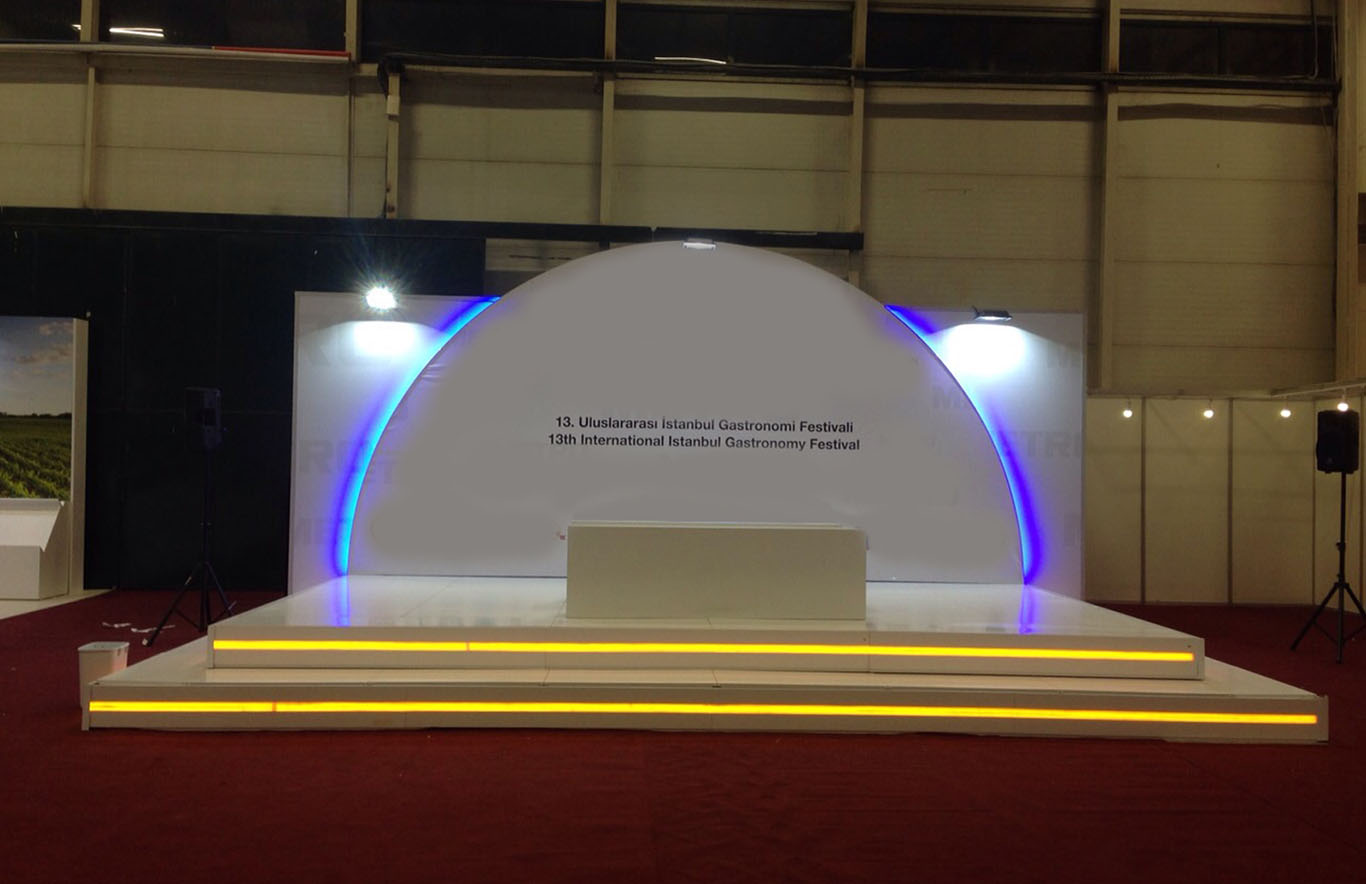

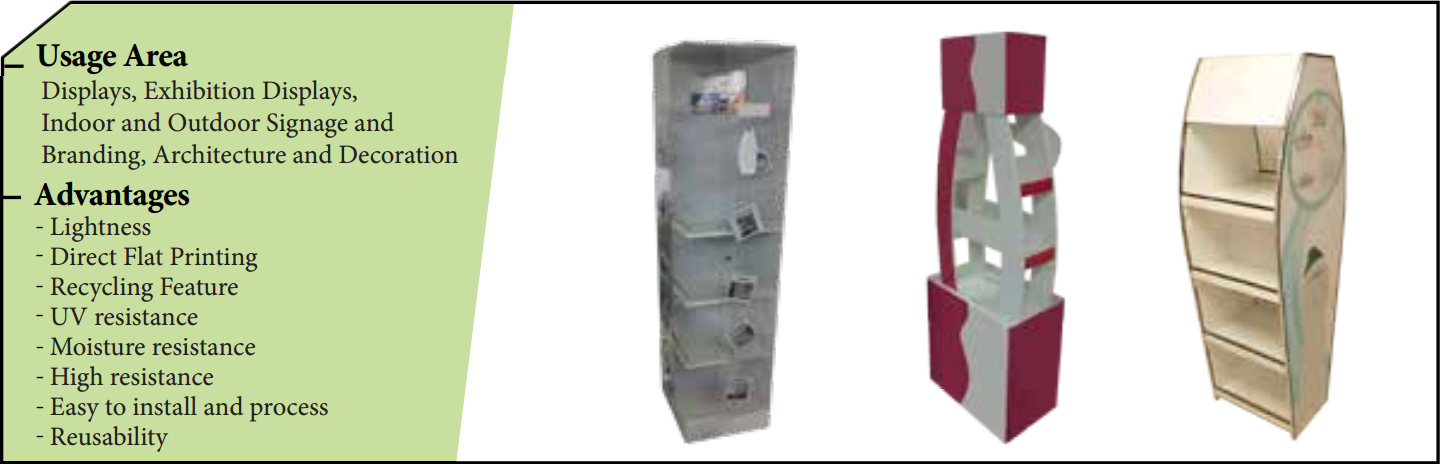

Advertising Materials

Household Appliances

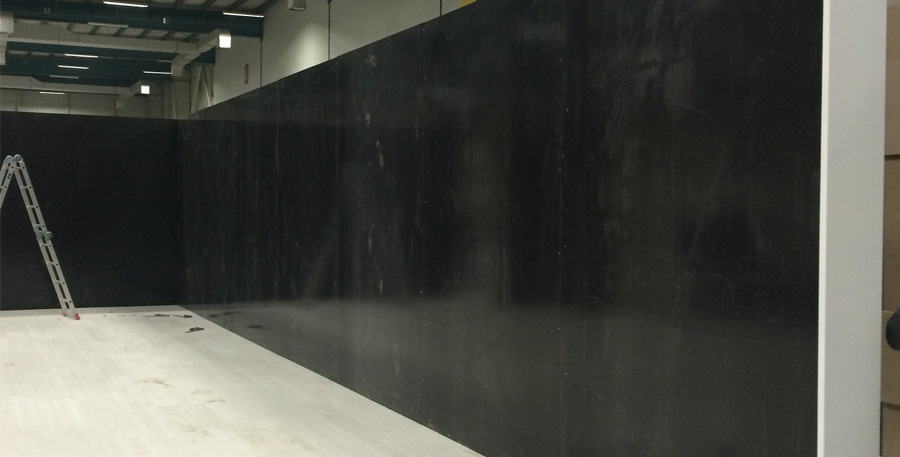

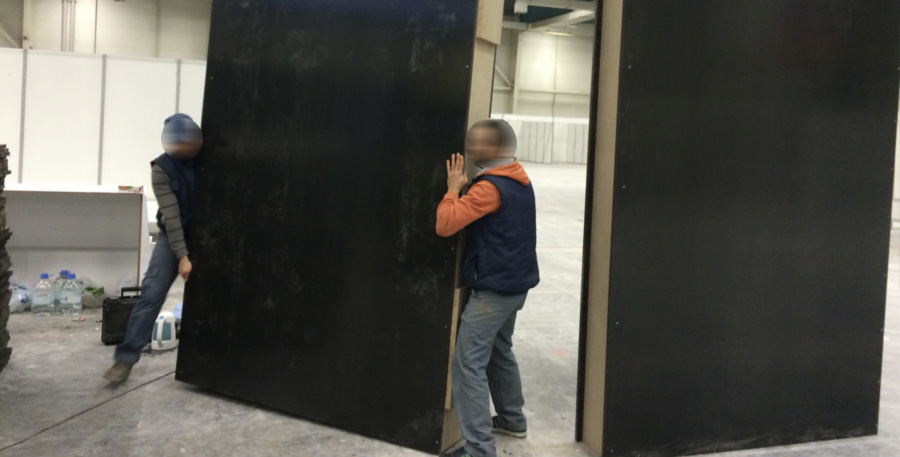

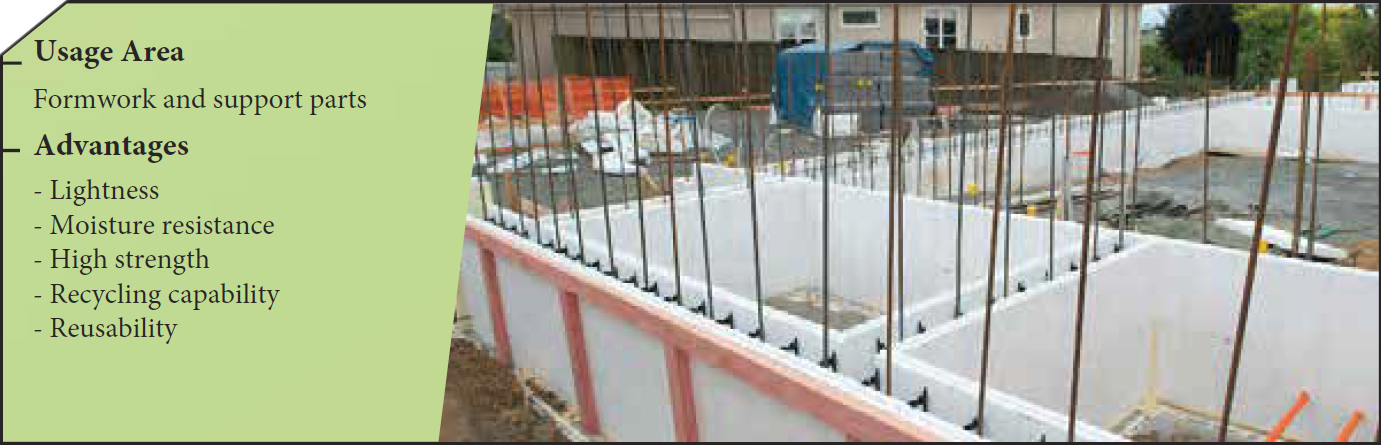

Construction

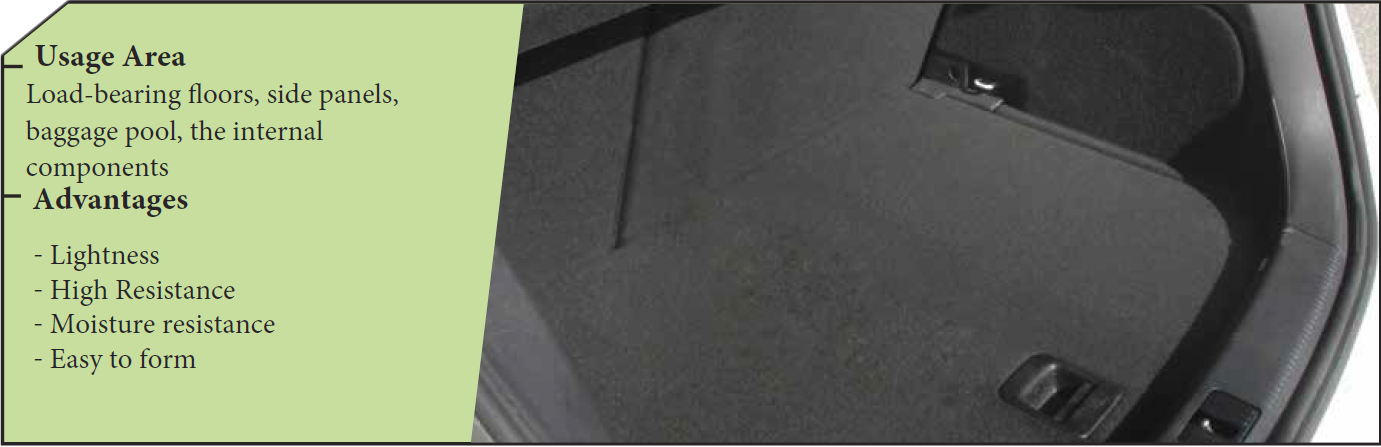

Automotive

Wind Energy

High-Speed Train

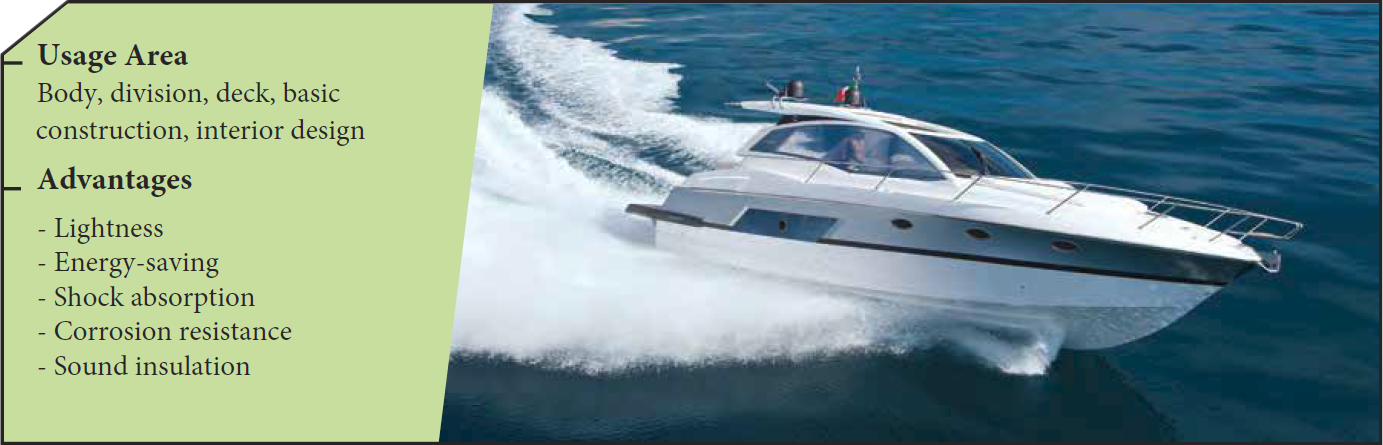

Yachting

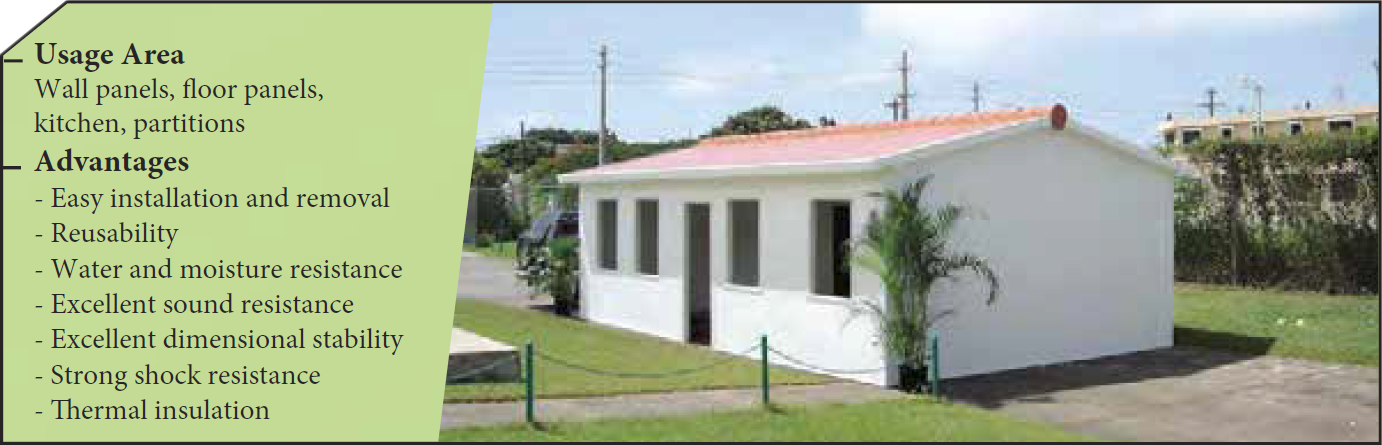

Prefabricated House

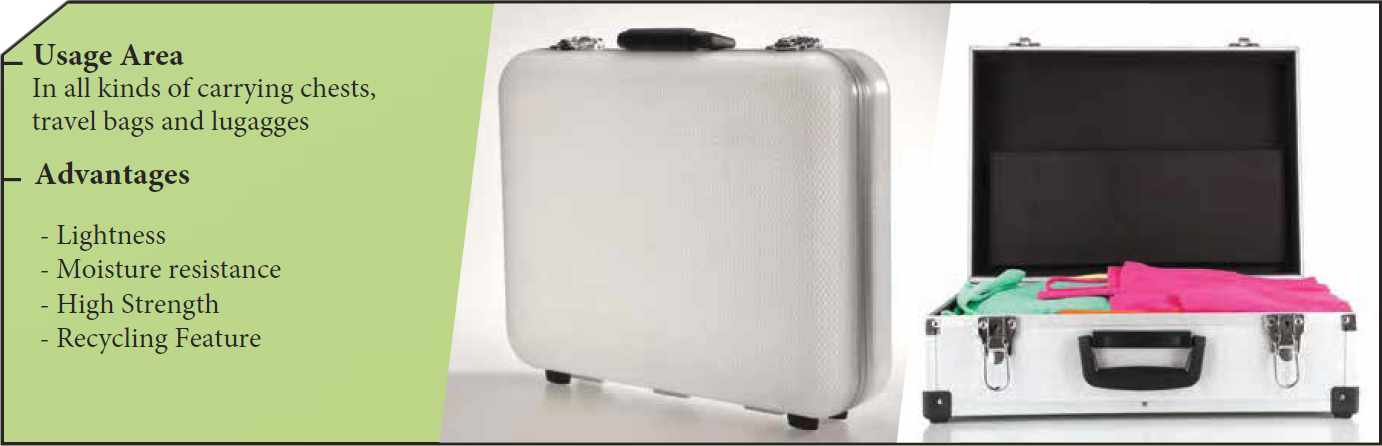

Carrying Chests

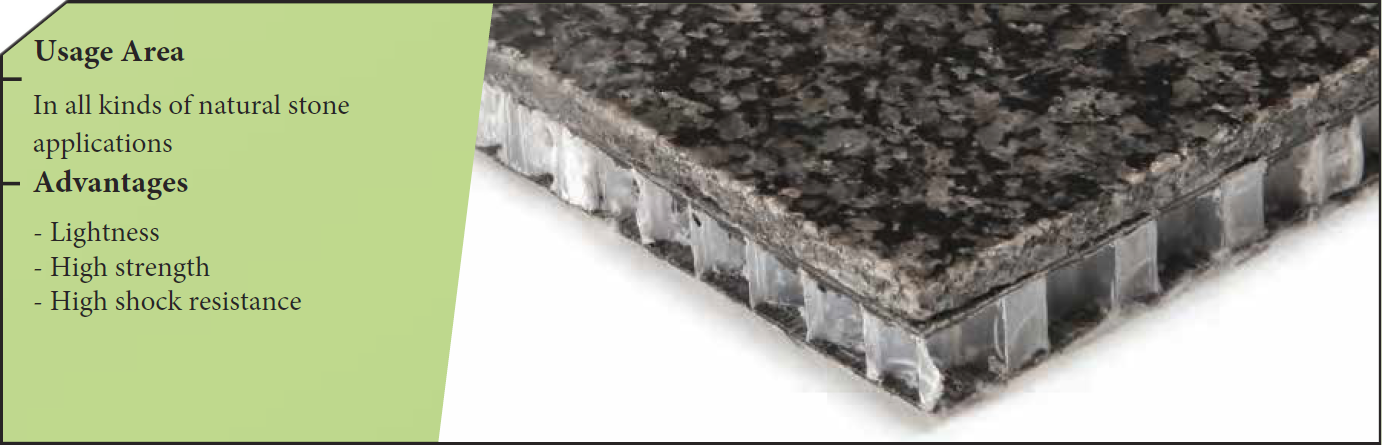

Granite and Natural Stone Support Panels

Solar Panels

Light commercial vehicle

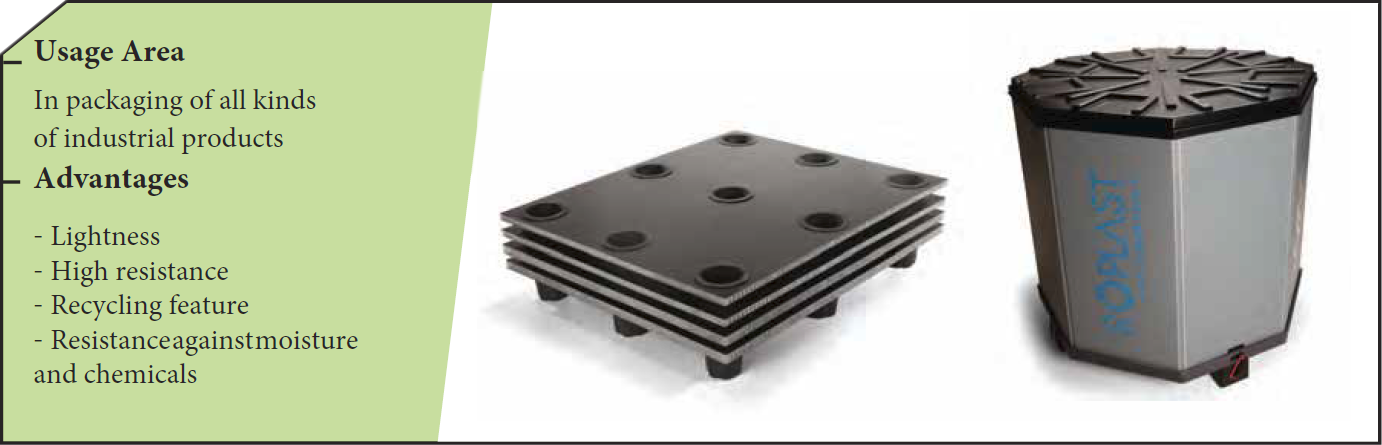

Pallets and Plastic Container
