HoneyComb Panel

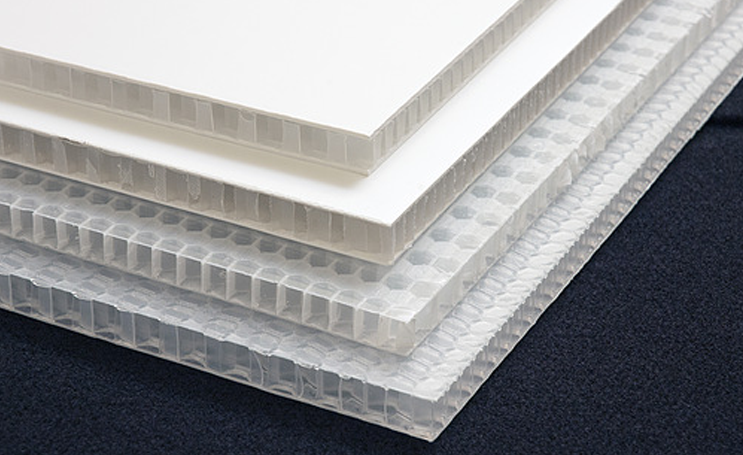

Honeycomb panel is a high technology sandwich structure with a honeycomb structure inside and high specific composite folios on both sides.
Product Detail
-
100% Recycling
Who we are?
“New Material of Advertising Industry”
Confidently, going forward the way of being supplier of many firms which are leader in the sector. Especially in Turkey, it is determined to be leader in traditional plastic sector due to has got some unique patented products. Such as S-line corrugated sheets, honeycomb core sandwich panels.
Corporate“Polypropylene Honeycomb Composite Panels are suitable for usage in Advertising industry. Honeycomb panels are Lightweight, Durable and High UV and Moisture resistance. Can be used both at Indoor and Outdoor. Suitable for Flat Printing, Di-cut, Laser and CNC cuts. Displays and similar advertising materials can be produced from this recyclable and innovative material."
HoneyComb Panel Features
Lightness
Honeycomb plates consist of two surface plates and a honeycomb shaped core structure. With low density property of the thermoplastic structure, superiority is provided compared to materials such as metal and ceramic and others
Recycling
Panels are 100% recyclable. Our product which is free from additives such as adhesive film, consists of PP and composite folios.
Impact Resistance
In room conditions, when 20mm diameter of load is applied, impact resistance is over > 80J and at -20 oC up to 35 J.
Chemical Resistance
PP comb structure and composite folio provide superior resistance against chemicals.
Compressive Strength
On the short term loadings, it is determined that it has resistance up to 1.6 Mpa of pressure, on 75x75mm area.
Procedures
Panels can be formed with chip removal and thermoforming methods. It is suitable especially for riveting, welding and bonding
Environmental Resistance Factor
It is proven with tests that surface plates have perfect UV resistance and also show high resistance against chemical, petrol and oil derivatives. Water absorption of the panel is below 1.4%.
Thermal Insulation
Our panels whose thermal conductivity in room conditions is less than 0.12 W/mK, also can be used for heat insulation purposes.
Bending Feature
There is no torsion observed on 8 kg of load which is put along the 600 mm of the bearing support distance of the standard plate in 30mm thickness and 100mm width.
Application Areas
Honeycomb Panels are suitable for usage in Advertising industry. Honeycomb panels are Lightweight, Durable and High UV and Moisture resistance. Suitable for Flat Printing, Di-cut, Laser and CNC cuts. These panels can be used instead of MDF, Chipboard, PVC Foam, PS, ABS panels.
Other Usage AreasProducts
Polypropylene Boards

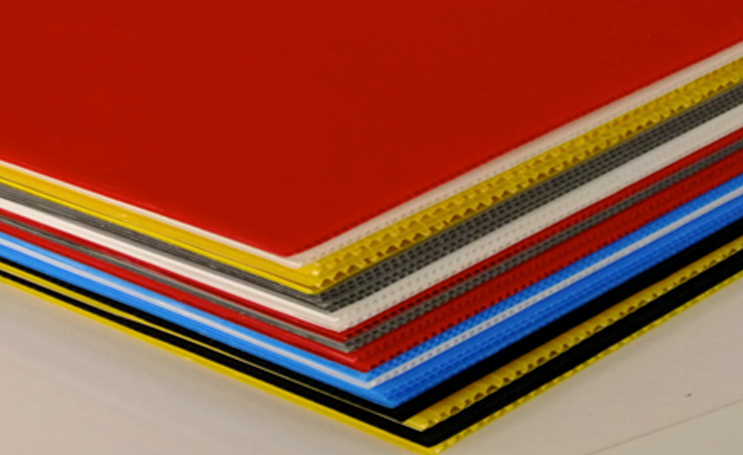

H – Line Corrugated Panel
Polypropylene H – Line panels has High UV resistance, suitable for direct printing and di-cutting. These panels are commonly used in Advertising industry.
Product Detail

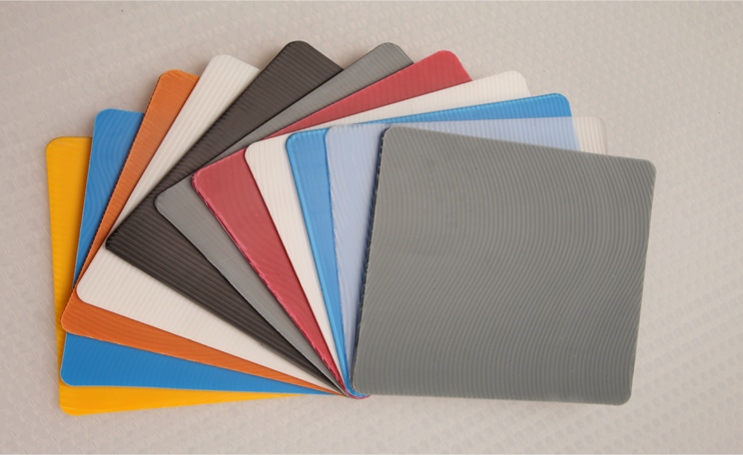

S – Line Corrugated Panel
Polypropylene S- Line panels are more durable compare to H – Line panels, these panels has High UV resistance, suitable for direct printing and di-cutting. These panels are commonly used in Advertising industry.
Product Detail
